BOSS XL

3160KAJ-9005

31HP Kawasaki FX921V

60" CUTTING DECK

ContourDTS

JOYSTICK STEERING

ON SALE NOW! CALL FOR PRICE

3560KAJ-9005

35HP Kawasaki FX1000V

60" CUTTING DECK

ContourDTS

JOYSTICK STEERING

ON SALE NOW! CALL FOR PRICE

3560KAT-9005

35HP Kawasaki FX1000V

60" CUTTING DECK

ContourDTS

TWIN STICK STEERING

ON SALE NOW! CALL FOR PRICE

3572KAJ-9005

35HP KAWASAKI ENGINE

72" CUTTING DECK

ContourDTS

JOYSTICK STEERING

ON SALE NOW! CALL FOR PRICE

3572KAT-9005

35HP KAWASAKI ENGINE

72" CUTTING DECK

ContourDTS

TWIN STICK STEERING

ON SALE NOW! CALL FOR PRICE

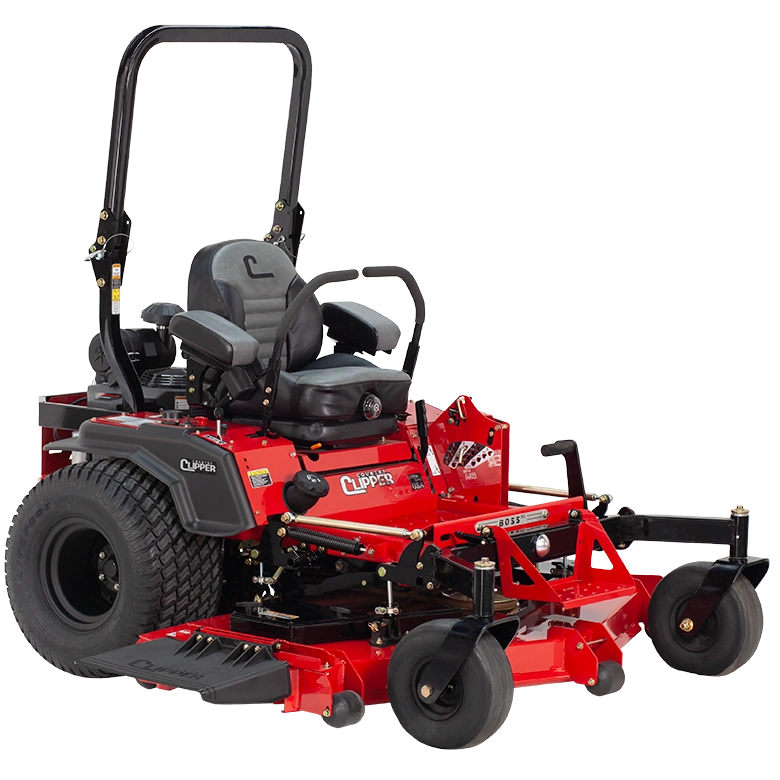

BOSS XL

Innovative Deck Design

Stand-Up Deck • Easy access to underside of the deck for maintenance and cleaning. • Auto detach system releases deck by simply locking the deck in the lowest position. ContourDTSTM • Experience maximum comfort, superior traction, and an unprecedented quality of cut through the integration of a center pivoting front axle and dual-independent deck suspension system. Rugged Deck Construction • Welded 10 gauge steel shell with 10 gauge steel plate reinforcement and an additional 7 gauge spindle mounting reinforcement • Replaceable polymer wear bar on trim edge • Protective bullnose on leading edge of deck • High impact anti-scalp rollers.

Industry Proven Steering

Joystick Steering • Exclusive to Country Clipper Mowers • Leaves You with a Free Hand • Easy to Learn • Fun to Use! Twin Lever Steering • Not Available with 31 HP Kawasaki Engine Industry Proven Steering • Bagger* • Mulch Kit* • Deck Lift Jack** • Hand Rail • Light Kit Accessories *Not compatible with 72” Decks **Standard with 72” Decks

BOSS XL SPECS

31 HP Kawasaki FX921V

35 hp Kawasaki® FX1000V

Horsepower 31, 35

Cylinders 2

Oil Capacity 2 qt (1.9 L)

Drive System Hydro-Gear® ZT-5400

Fuel Capacity 10.25 Gallon

Steering Control Joystick, Twin Lever

Stand-up Deck Standard

Pivoting Front Axle Standard

Roll-Over Protection Standard

Tires, Rear 26x14-12

Tires, Front 15x6-6

Turning Radius Zero-Turn

Ground Speed (Forward/Reverse) 12.5 mph/7.5 mph

Weight(Approx.) 1330 lbs 1330 - 1338 lbs 1413 - 1421 lbs

Height : top of seat back 49"

Height : top of ROPS extended 70"

Height : top of ROPS folded 51"

Width, Tractor (outside rear tires) 59"

Width, Deck w/ Chute 73", 85"

Width, Deck Chute Up 61", 73"

Cutting Width 60", 72"

Cutting Height 2" - 5" (1/4" increments)

Deck Construction Laminated Welded 10 Gauge Steel Deck with 10 Gauge Strategic Reinforcements, including protective bullnose front & high impact anti-scalp rollers; 3/8" x 2" wear bar on trim edge

Deck Engagement Electric, Warner®

Blade Length 21", 25"

Spindle Assembly Cast iron housing; 1.5" diameter shaft; maintenance free & field serviceable

Blade Tip Speed, approx. 19,000 fpm

Weight (Approx.) 1330 lbs 1330 - 1338 lbs 1413 - 1421 lbs

Seat Deluxe suspension seat with adjustable lumbar support, back and seat cushion angle; 3" travel suspension; mounted on vibration isolators

Other Standard Features: Electric Start, Arm Rest, Cup Holder, Storage Tray, Hour Meter, Front Step, ROPS, Trailer Hitch Receiver, Electric Fuel Gauge

Due to continuous product improvement, specifications are subject to change without notice.
