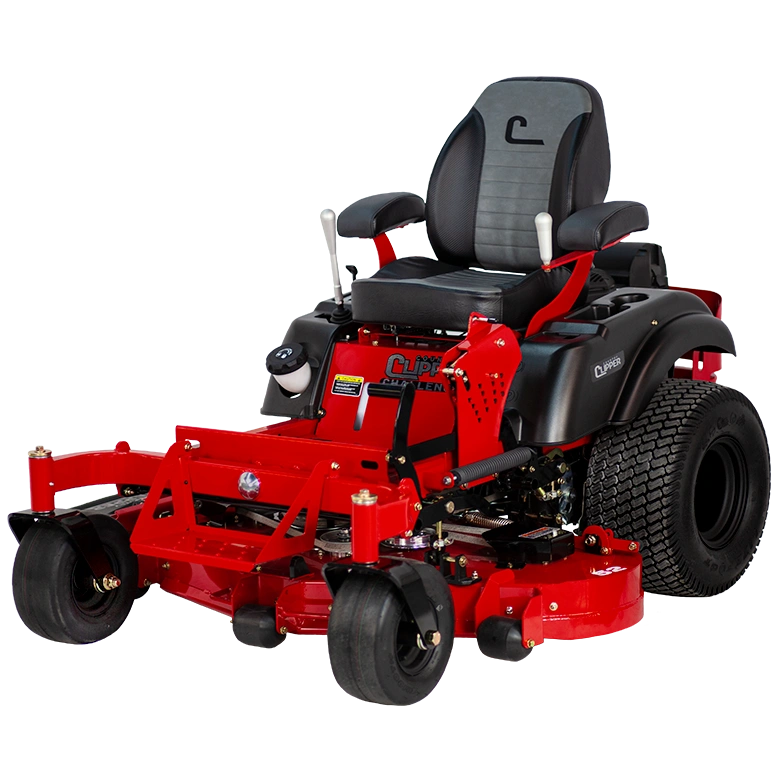

CHALLENGER

24 hp Kawasaki® FS730V,

25 hp Kohler® ZT740 (Joystick Steering Only)

Horsepower 24, 25

Cylinders 2

Oil Capacity 2 qt (1.9 L), 2.2 qt (2.1 L)

Drive System Hydro-Gear® ZT-3400

Hydro Oil Cooler N/A

Fuel Capacity 7 Gallon

Steering Control Joystick, Twin Lever

Stand-up Deck Standard

ContourDTS Standard

Roll-Over Protection N/A

Tires, Rear 22x11-10

Tires, Front 13x6.5-6

Turning Radius Zero-Turn

Ground Speed (Forward/Reverse) 9 mph/5 mph

Length 79"

Height : top of seat back 51"

Height : top of ROPS extended N/A

Height : top of ROPS folded N/A

Width, Tractor (outside rear tires) 49"

Width, Deck w/ Chute 65", 73"

Width, Deck Chute Up 53", 61"

Cutting Width 52", 60"

Cutting Height 1.5" - 5" (1/4" increments)

Deck Construction Laminated Welded 12 Gauge Steel Deck with 10 Gauge Strategic Reinforcements, including protective bullnose front & high impact anti-scalp rollers; 3/8" x 2" wear bar on trim edge

Deck Engagement Electric, Warner®

Blade Length 18.375", 21"

Spindle Assembly Cast aluminum housing; 1" diameter shaft; maintenance free

Blade Tip Speed, approx. 18,000 fpm

Weight 829 lbs, 839 lbs

Seat High Back, Enhanced Comfort Seat with Statisc Suspension and Adjustable Slides

Other Standard Features: Hour Meter, Electric Start, Arm Rest, Cup Holder, Front Step, Hitch Plate

Due to continuous product improvement, specifications are subject to change without notice.
